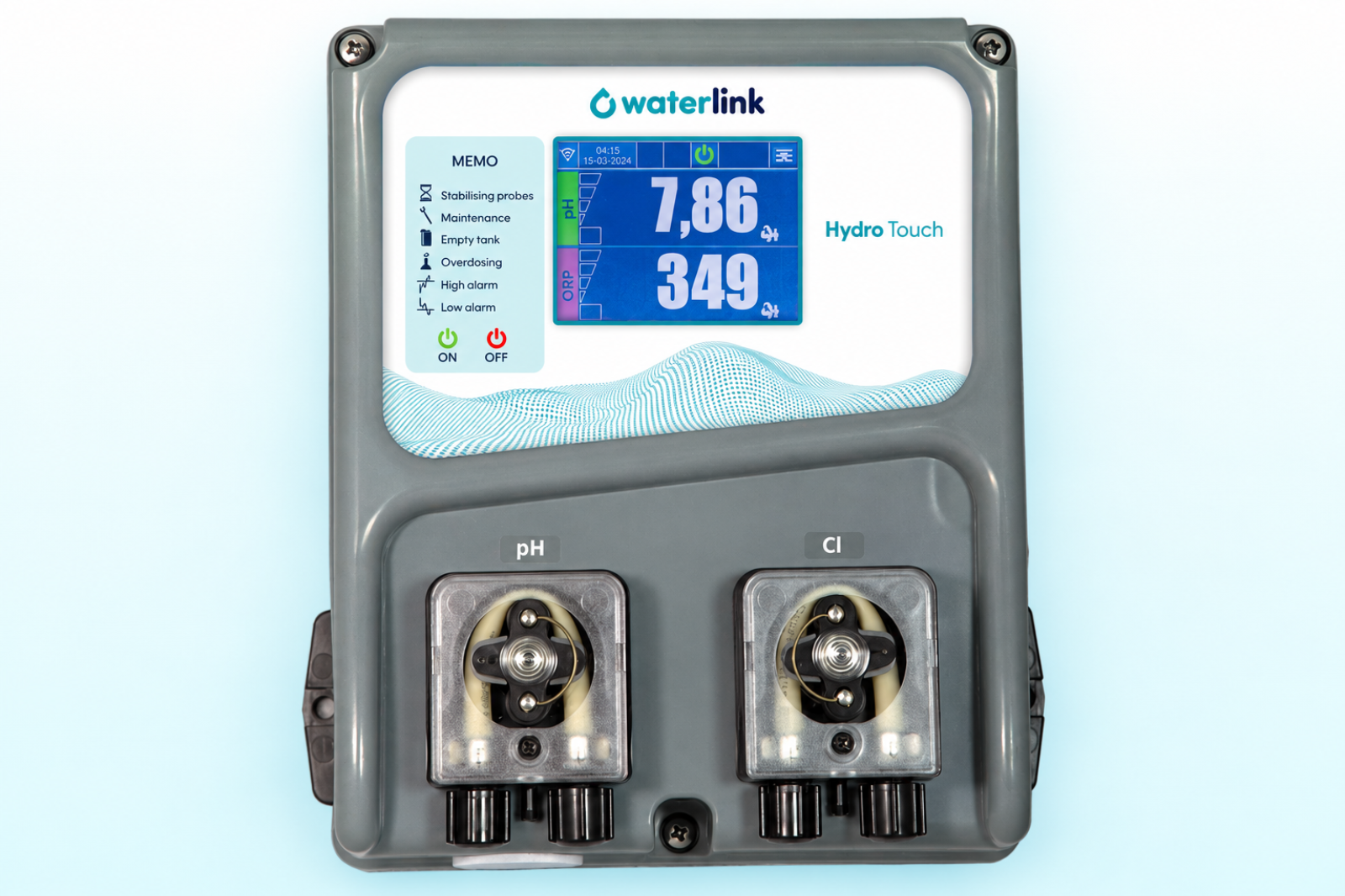

Hydro Touch
pH & ORP / Free Chlorine Controller
Hydro Touch delivers high-performance precision dosing for light commercial pools and spas up to 160,000 litres. It automatically controls sanitiser and pH, self-diagnoses to confirm correct feed rates, and raises clear overfeed alarms when needed.
- pH with ORP or free chlorine control
- One or two onboard DULCOFLEX peristaltic pumps
- Chlorine GPO models for salt chlorinators
- Pools and spas up to 160,000 litres
Precision Dosing in a Compact Controller
Hydro Touch combines pH and sanitiser control, onboard dosing pumps and self-diagnosis in one unit, giving light commercial pools and spas reliable, automated chemical control.
Onboard DULCOFLEX Pumps
One or two onboard DULCOFLEX peristaltic pumps, with flow rates matched to pool volume.
3.5" Touchscreen
Easy-to-navigate menus and clear live readings on a user-friendly touchscreen interface.
Self-Diagnosis
Self-diagnostic capability confirms correct feed rates, with self-diagnosis and calibration as standard.
Proportional Dosing
Proportional dosing control with a pool pump timer, multiple timer options and manual override.
Tank Level and Overdose Alarms
Level control of the product tanks and clear overfeed alarms when necessary.
Electrolyser Ready
Adapts to all electrolysers (plug model), with a chlorine GPO on single-pump models to switch a salt chlorinator.
Models
Choose between ORP or free chlorine control, and between a chlorine GPO for salt chlorinators or twin pumps for liquid chlorine and acid.
- 1x pump for liquid acid
- 1x chlorine GPO and Gold ORP probe for salt chlorinator, with timer
- 2x pumps (liquid chlorine and acid)
- Standard ORP probe, with timer
- 1x pump for liquid acid
- 1x chlorine GPO and standard free chlorine probe, with timer
- 2x pumps (liquid chlorine and acid)
- Standard free chlorine probe, with timer
Upgrade Options
- FAC probe
- Flow switch component
- Remote monitoring with Waterlink Modem
- Temperature measurement
- Tank level and alarm relay
Specifications
| Feature | ORP Models | FAC Models | ||
|---|---|---|---|---|
| CHYT0454AU (1x pump) | CHYT0444AU (2x pumps) | CHYT0434AU (1x pump) | CHYT0433AU (2x pumps) | |
| Timer for pool pump | Yes | Yes | Yes | Yes |
| Proportional dosing control | Yes | Yes | Yes | Yes |
| Chlorine output | GPO (chlorinator) | Liquid chlorine | GPO (chlorinator) | Liquid chlorine |
| pH output | Diluted liquid acid | Diluted liquid acid | Diluted liquid acid | Diluted liquid acid |
| Self-diagnosis and calibration | Standard | Standard | Standard | Standard |
| Probe location / panel mount | Inline sensors, no panel | Inline sensors, no panel | Sensors in probe block, panel mounted | Sensors in probe block, panel mounted |
| Touchscreen display | 3.5" | 3.5" | 3.5" | 3.5" |
Suits commercial pools and spas with volumes up to 160,000 litres. 100% compatible with new chemical concentrations, including the new multi-acid pH(-).
Backed by Waterlink’s standard commercial warranty. See full terms at waterlink.com/warranty.
Applications
Hydro Touch is built for commercial aquatic environments that need dependable, automated pH and sanitiser control.
Frequently Asked Questions
Which Hydro Touch model is right for my site?
ORP models (CHYT0454AU and CHYT0444AU) use inline sensors with no panel. FAC models (CHYT0434AU and CHYT0433AU) use sensors in a panel-mounted probe block. Single-pump models switch a salt chlorinator through the chlorine GPO and dose liquid acid, while twin-pump models dose both liquid chlorine and acid.
Can Hydro Touch control a salt chlorinator?
Yes. The single-pump models (CHYT0454AU and CHYT0434AU) include a chlorine GPO with timer to switch a salt chlorinator, and CHYT0454AU also includes a Gold ORP probe for salt chlorinators. Hydro Touch adapts to all electrolysers (plug model).
Is Hydro Touch compatible with multi-acid pH reducers?
Yes. Hydro Touch is 100% compatible with new chemical concentrations, including the new multi-acid pH(-).
What pool and spa volumes does Hydro Touch suit?
Hydro Touch suits pools and spas with volumes up to 160,000 litres. Different peristaltic pump flow rates are available to match the pool volume.
Can Hydro Touch be monitored remotely?
Yes. Remote monitoring with the Waterlink Modem is available as an upgrade, along with temperature measurement, a flow switch component, an FAC probe and a tank level and alarm relay.
What warranty applies to Hydro Touch?
Hydro Touch is backed by Waterlink’s standard commercial warranty. Full terms and coverage are available at waterlink.com/warranty.
